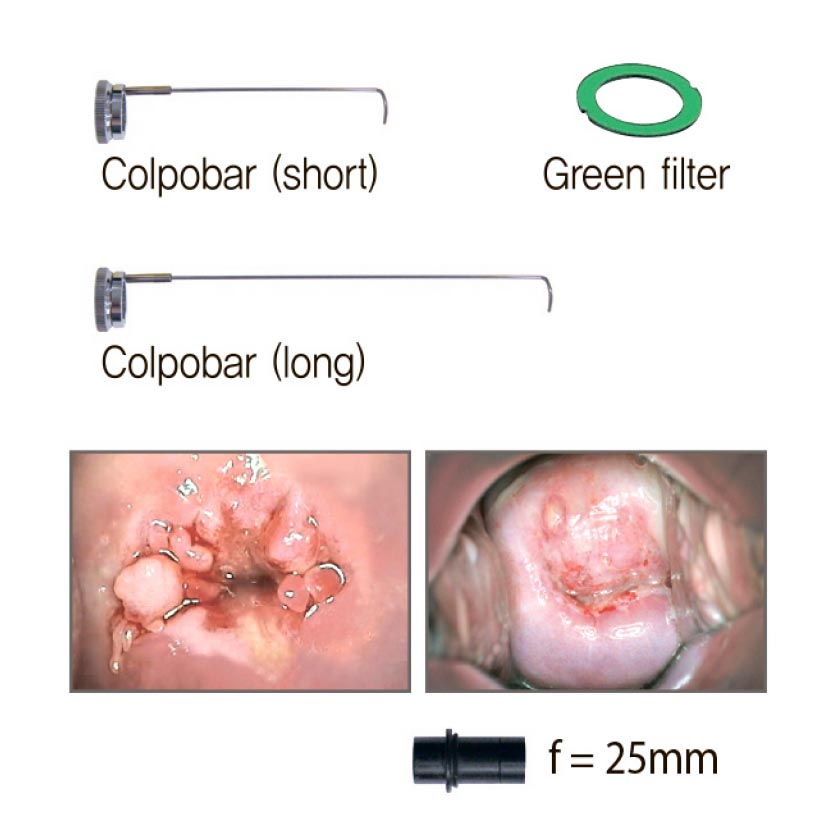

Video Colposcope

DSC-102 Pro

Easy diagnosis of Cervix with Colpobar anad Easy diagnosis of cervical erosion and CIN and CIS using built-in green filter.

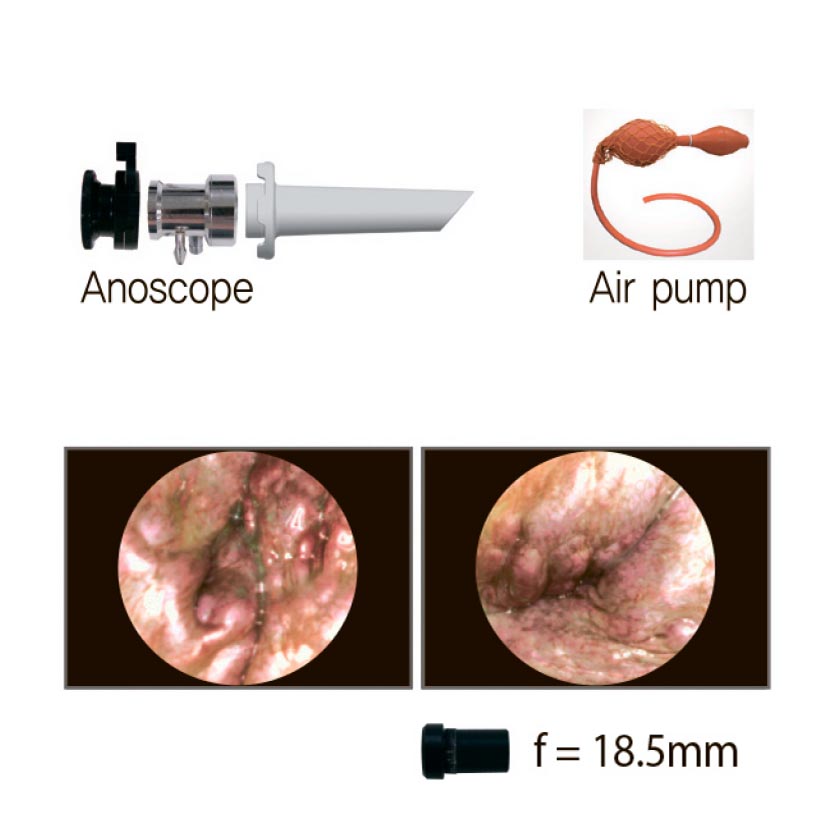

Video Rectoscope

DSC-103R Pro

Anoscope for Internal or External Hemorrhoids, Anal Fissure and Anal Fistula.

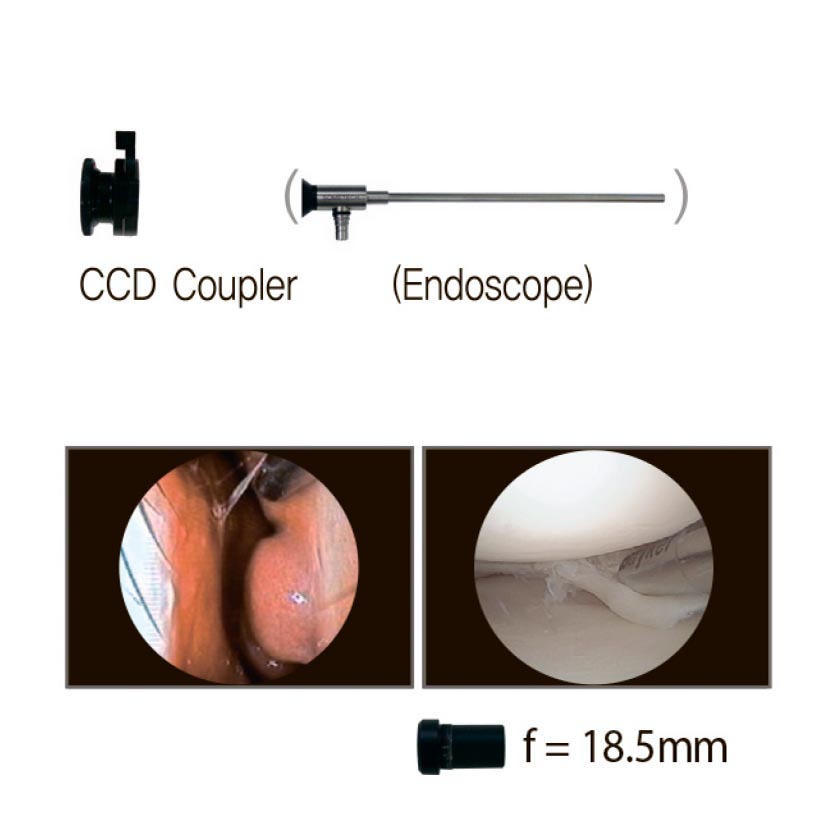

Endoscopic Camera System

DSC-103E Pro

Compatible with various endoscopes. It is possible to connect rigid endoscopes to durable CCD coupler.

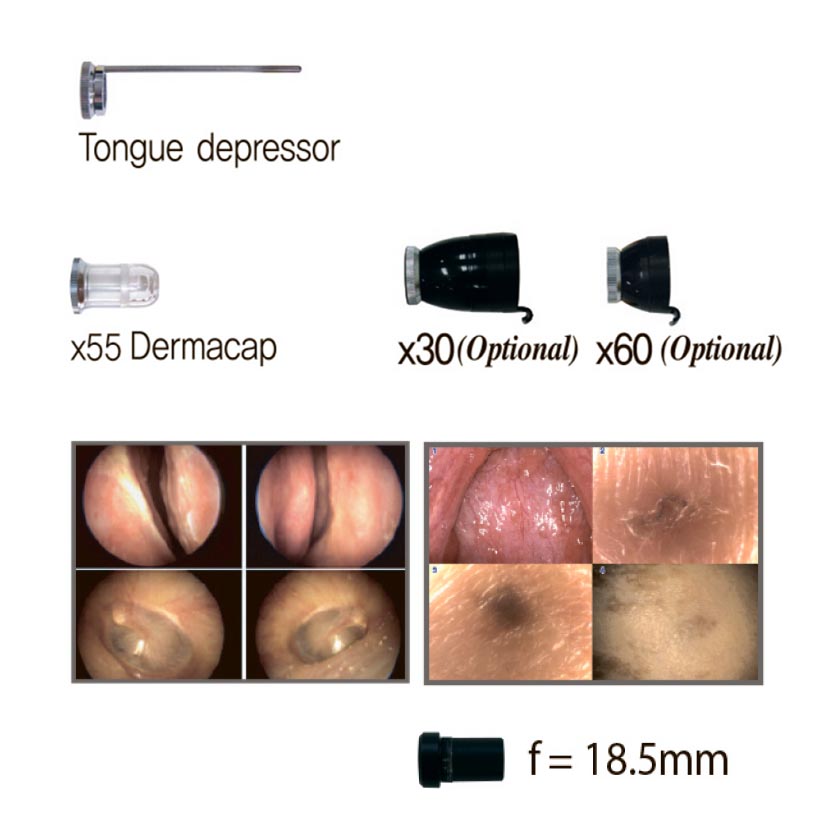

Video Otoscope Camera System

DSC-104T Pro

Diagnosis of ear drum and external auditory canal without inserting telescope deeply. Optimized Telescope diameter (3mm) for pediatric patients. Tonsil, larynx, skin can be diagnosed by various accessories.

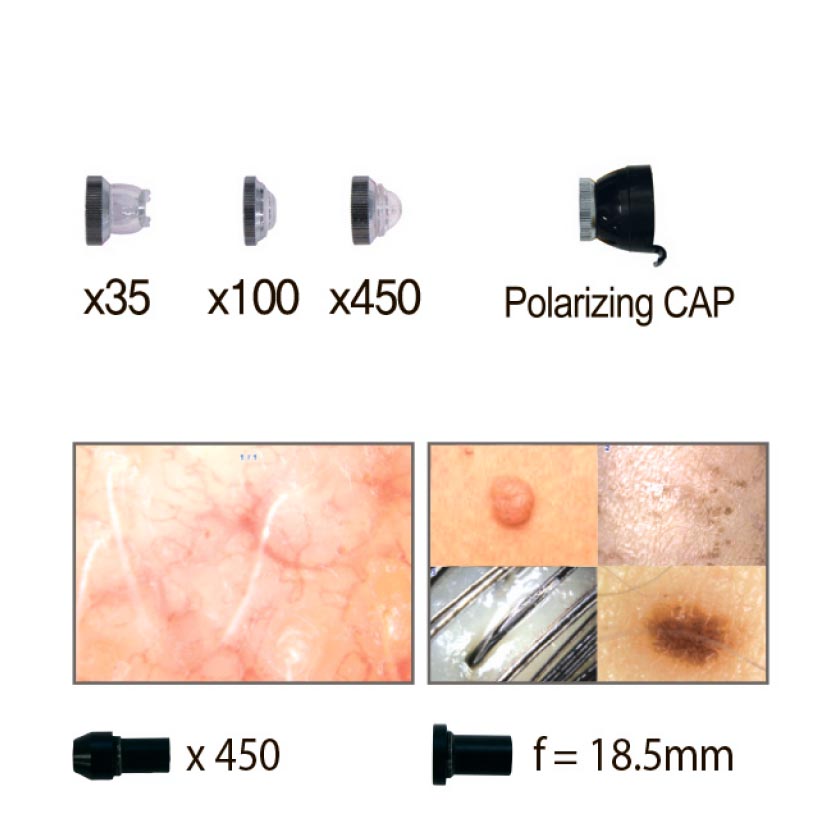

Video Dermascope

DSC-105 Pro

Side illumination can reduce light reflection and diagnose pore, keratin clearly. High magnification by using various kindsof lens and caps. Epidermis and pigmentation can be clearly diagnosed,

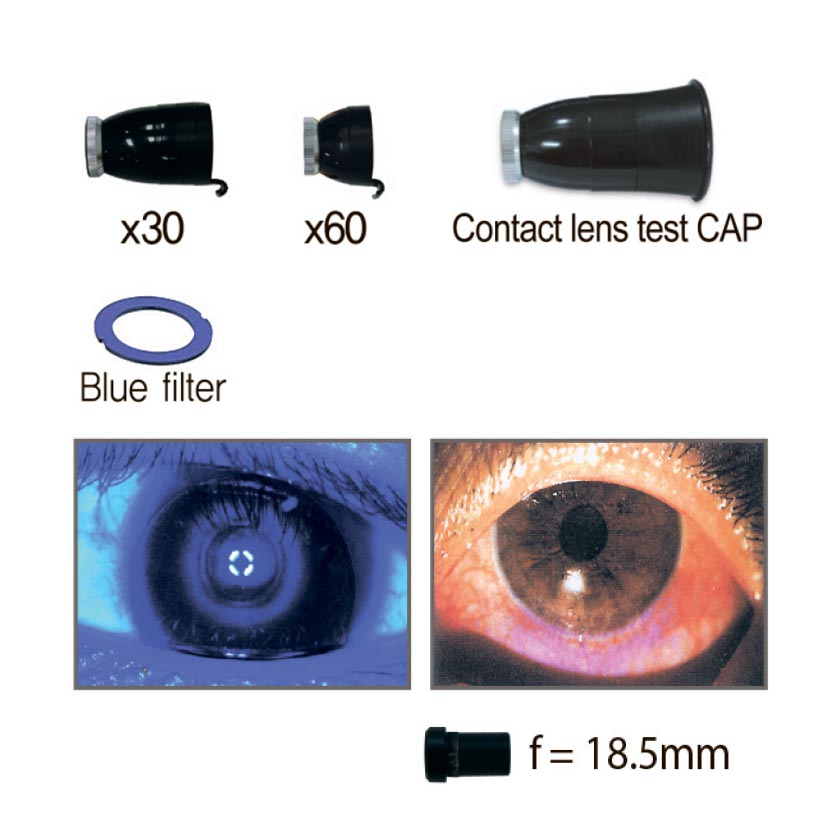

Video Scope for Opticion Camera System

DSC-108 Pro

Check on contact lens, conjunctivitis and iris.

Optimal solution for Telemedicine system

This is the most suitable medical camera for telemedicine system that enables remote-imaging treatment and prescription through network provided by qualified medical professionals.

Full HD(1080i / 60 Frames)

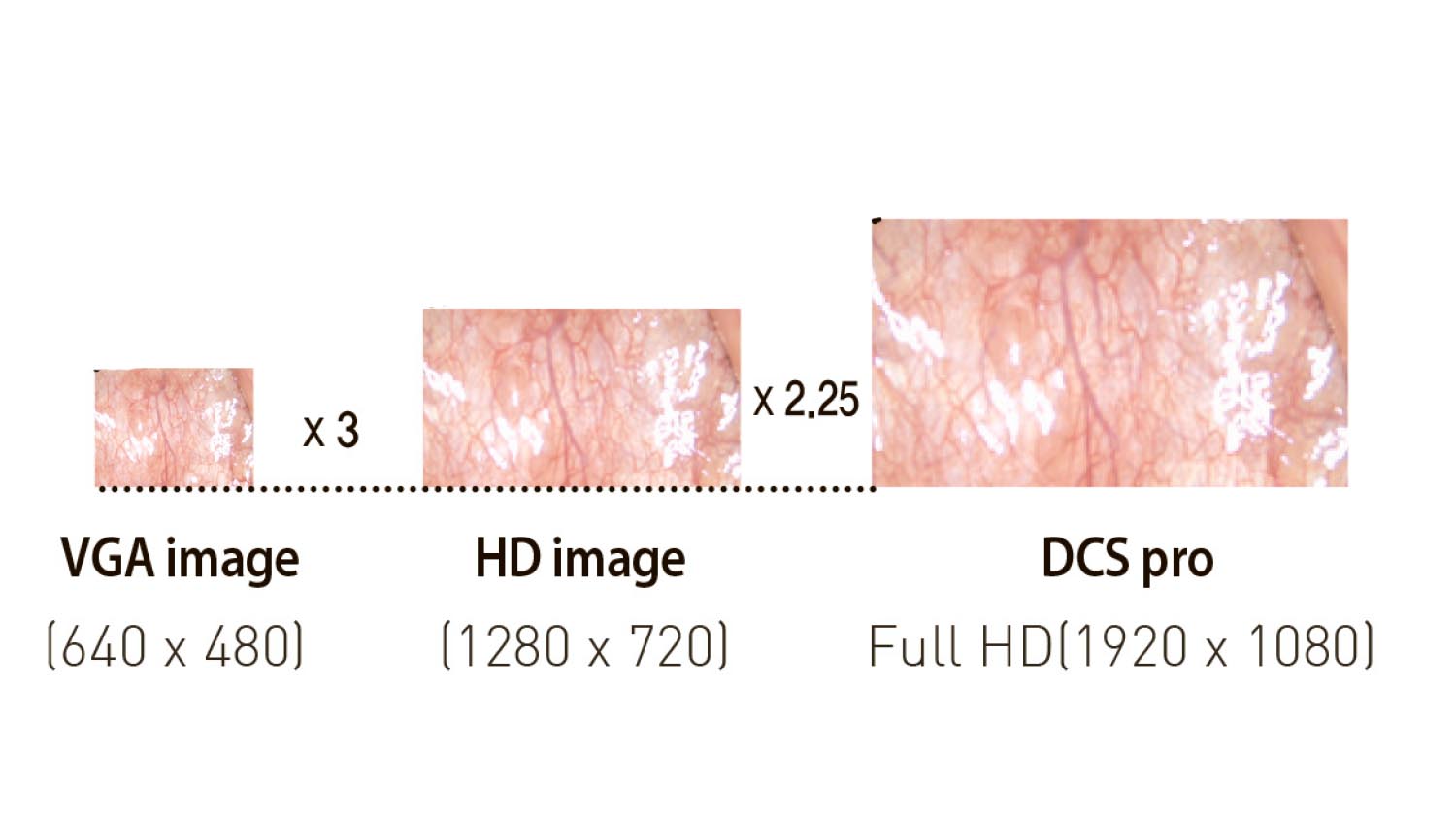

Image quality comparison

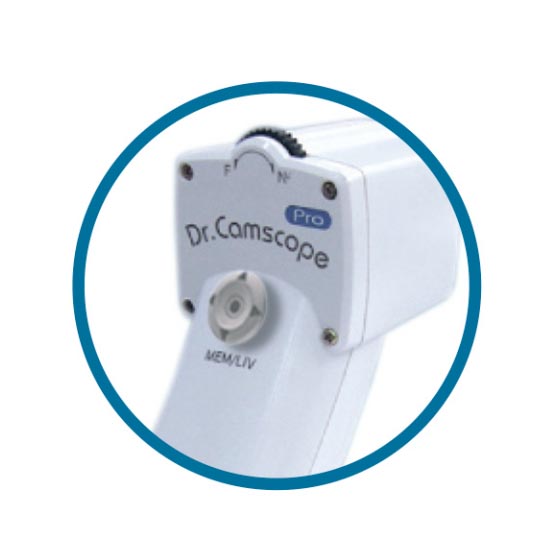

Convenient joystick

Convenient joystick with each directions can lead to freeze, save and zoom images conveniently.

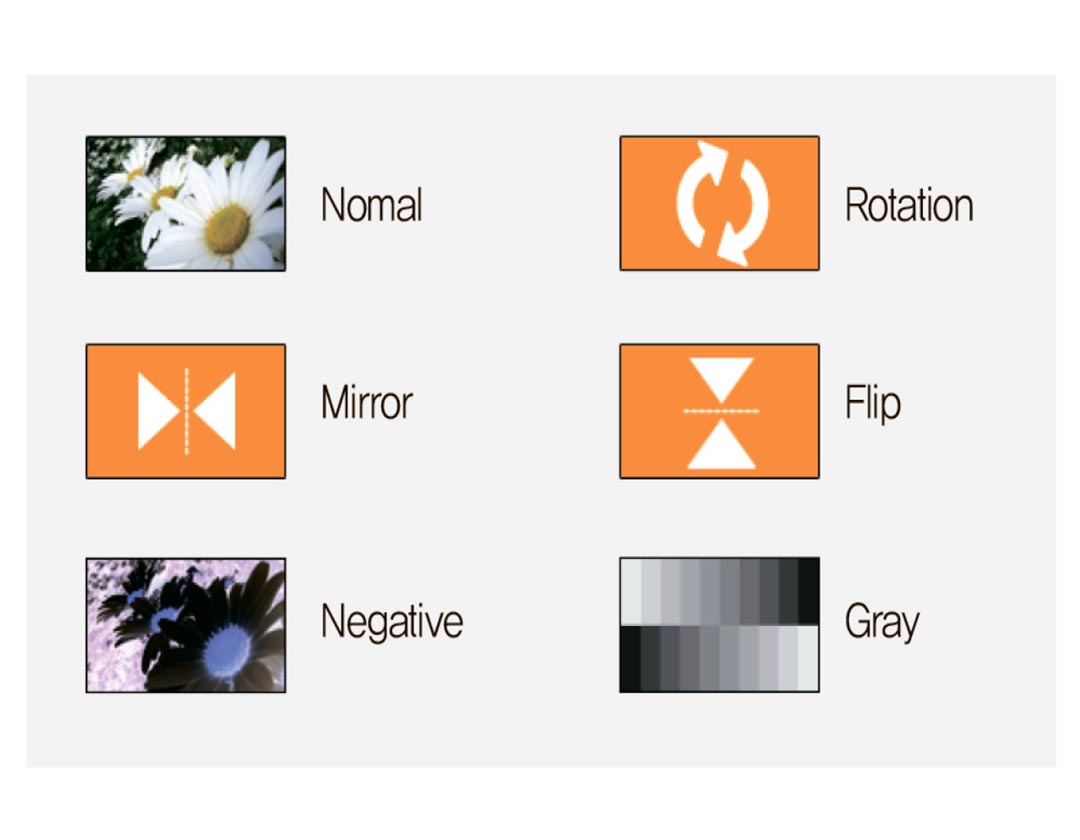

Image Conversion

Image can be conversed in various ways

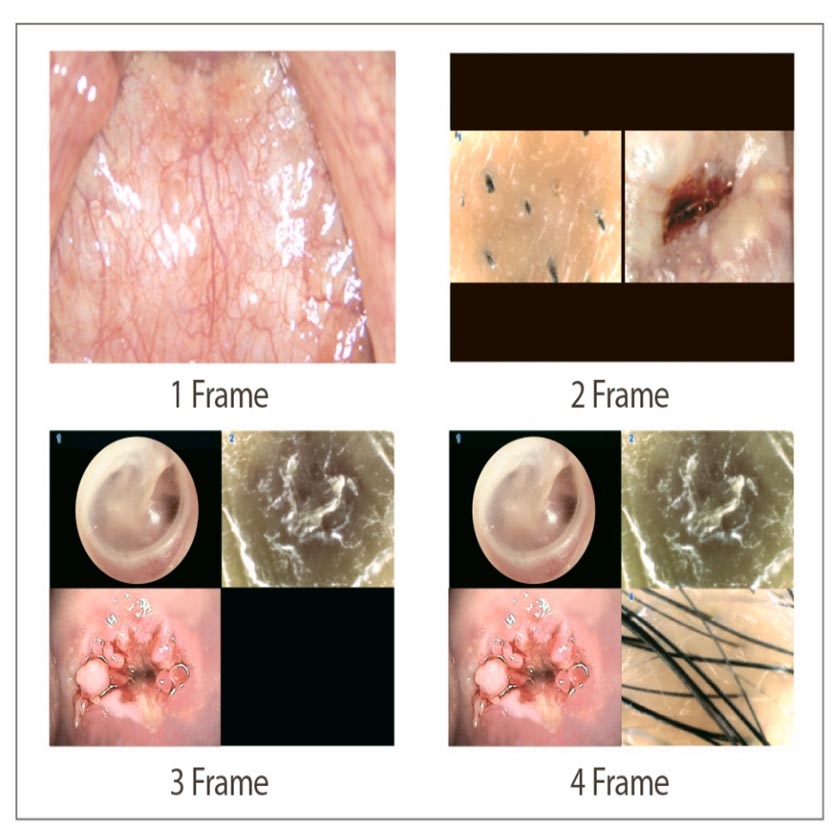

Image management

Captured images can be selectively saved onto internal memory (SD CARD) or USB. It can be connected to PC via USB port and manage saved images on main unite more efficiently. Various comparison and display. (1 to 4 frame)

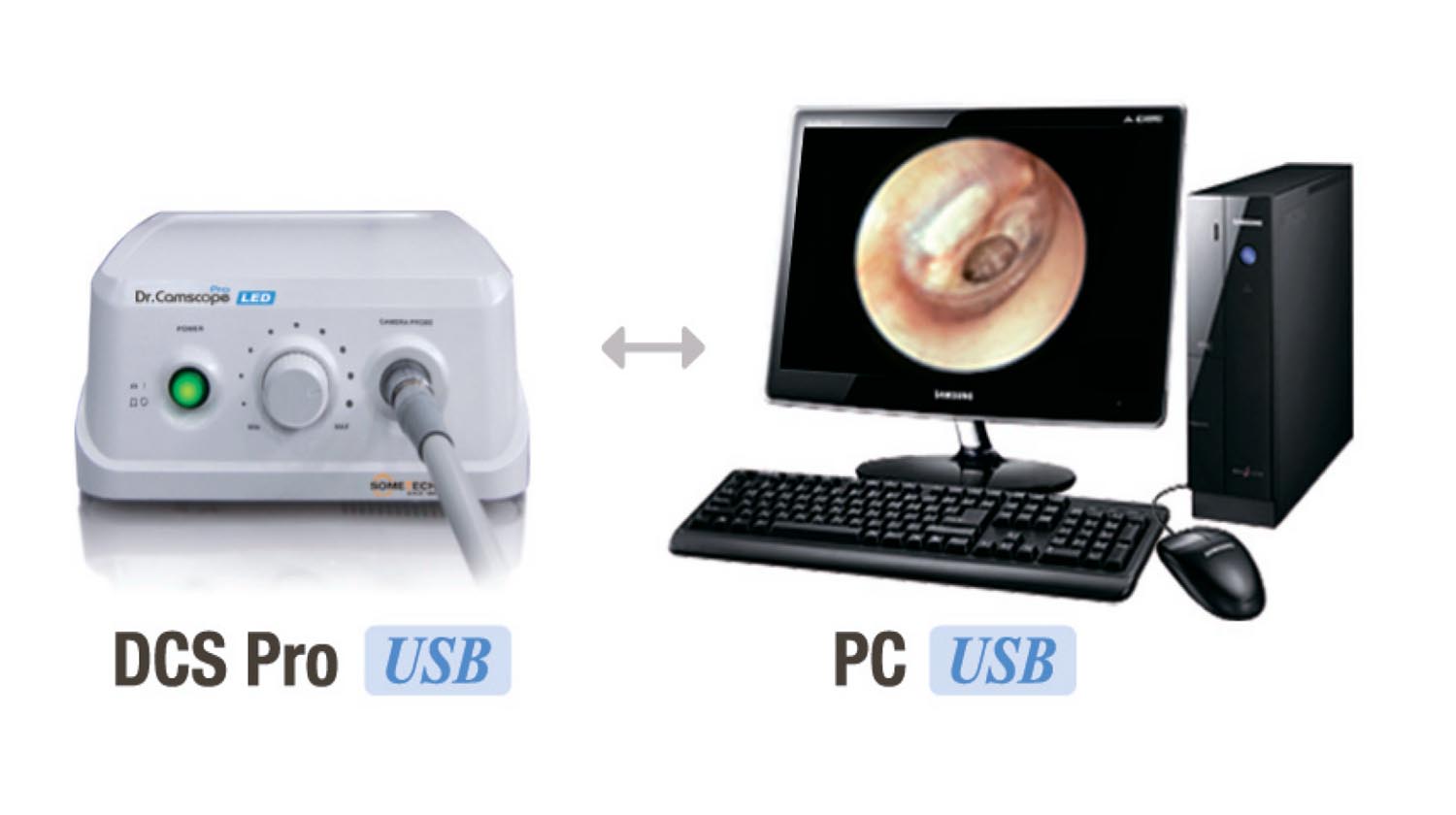

Easy Connection with PC/Laptops

DCS pro can be easily connected to a computer via USB 2.0. Users can save digital data on a computer.

18W LED Lamp loaded

18W LED Lamp is brighter than 100W Halogen Lamp. 4800° K color temperature close to natural light makes it possible to realize clearer image than Halogen lamp.

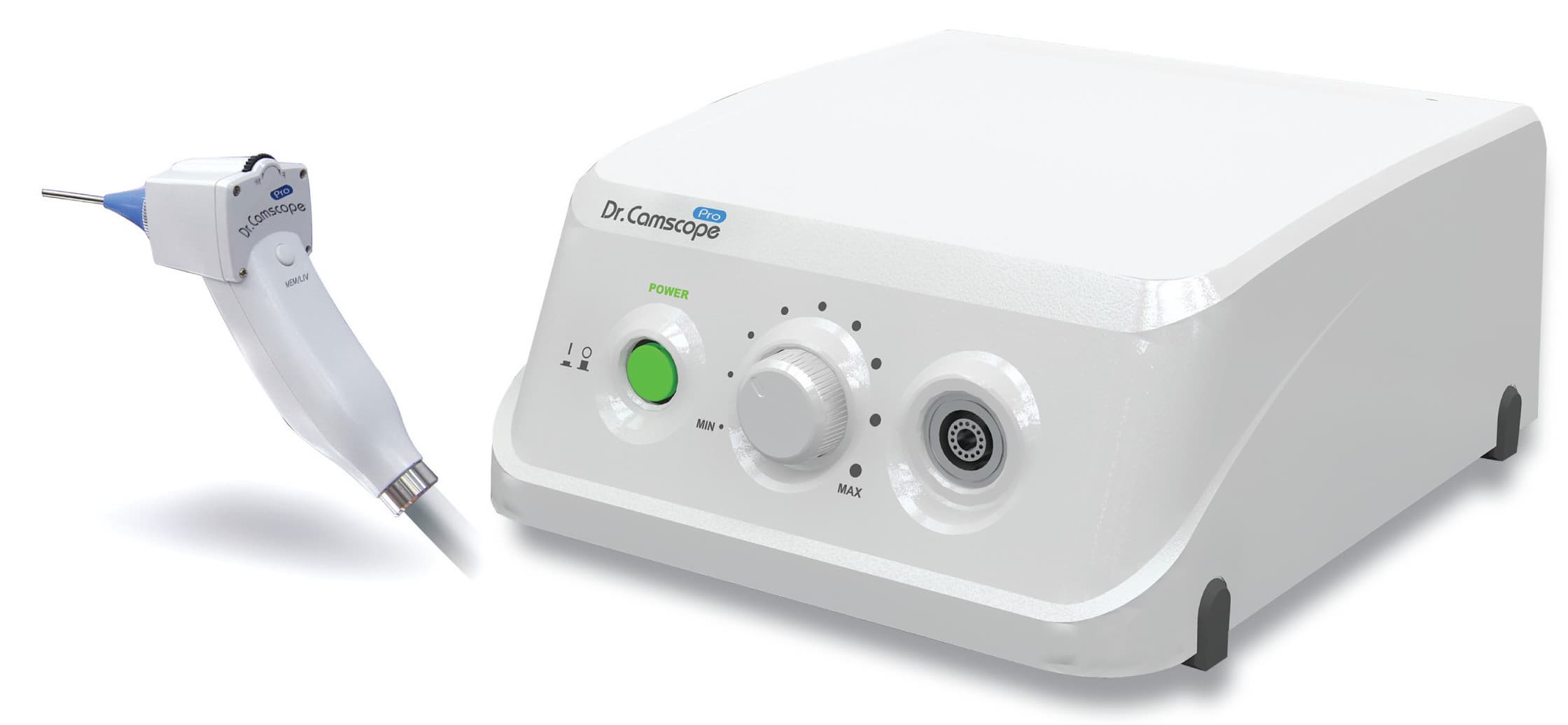

DSC-Pro Specifications

Fucntions

FULL-HD Live Image (16:9)
Comparison Image
USB2.0 PC Slave Mode
Image Adgustment
- Brightness, Sharpness,Contrast,Gamma, Exposure
- Image Conversion
- Selectable color mode(User 1/2/3/Default)
- Storaged Image File Play
- Create Folder, Delete Folder & File
- System Time setting

Camera Resolution

1920x1080

Video Out

1920x1080i, 60 frame, HDMI

PC Interface

USB 2.0 / Slave Mode
Directly connected to the PC application

Internal Storage

32G

External Storage Interface

USB 2.0 Memory Stic /FAT32

Still Image Capture

1920x1080 jpg File

User Key Interface

5 Directional Key

Light Source

18W LED lamp, Color temperature (4800° K), Adjustable light intensity

Cable Length

2.0M

Foot switch

for Freeze & Still Capture

AC Input

90-264VAC Max 45Watt Universal AC Input / Full range

Dimension

Width(209mm) x Depth(101mm) x Height(250mm)
