C3 HD3 Multipurpose Scanner
Convex
C3 HD3 Multipurpose Scanner
Standart
B-Mode
Color Doppler
M-Mode
Power Doppler
Opsiyon
DICOM
Pulsed-Wave Doppler
Uygulamalar
İdeal

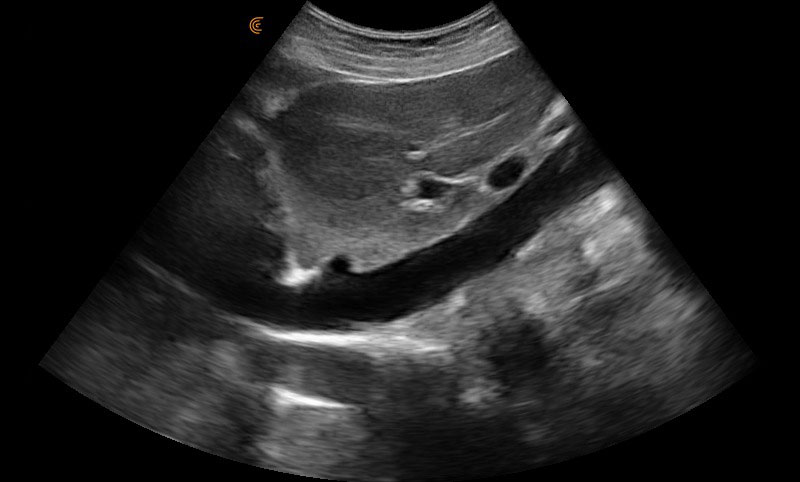

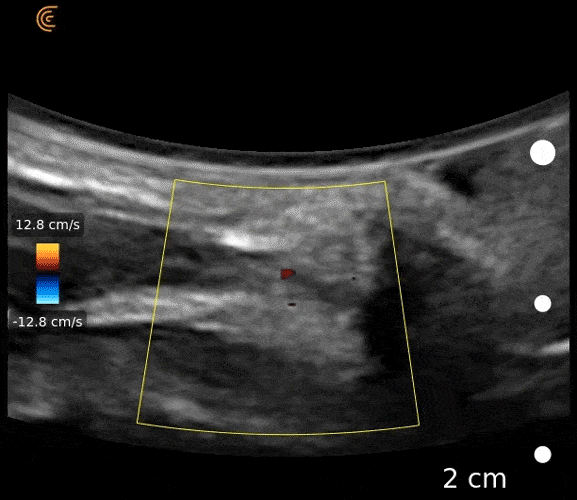

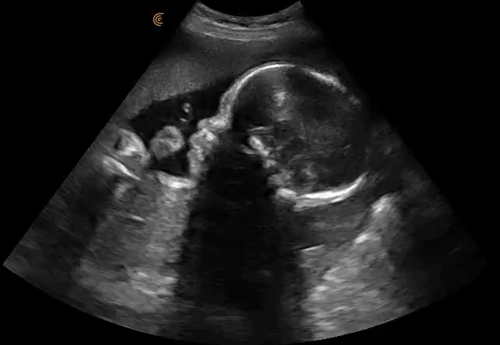

Abdominal Cardiac Lung OB/GYN Superficial Vascular
Teknik Özellikler
Overview |
Frequency : 2–6 MHz Max Depth : 40 cm |
Clinical Applications |
Abdominal Cardiac Lung OB/GYN Superficial Vascular |
Calculations Packages |
Obstetrics HC, FL, AC, CRL, GS, AFI. EFW from GA. Hadlock tables, HR Cardiac Bladder |
Physical Characteristics |
Dimensions : 146 x 76 x 32mm Weight : 308 g Programmable Buttons : 2 Field of View : 73° |
Probe Covers |
CIVCO : Standard Width - Latex-Free Ultrasound Covers for Wireless Probes Safersonic : Modified Single - Sterile Sonography Cover with Adhesive Area without fixation tape Safersonic : Single Plus - Sterile Sonography Cover with Adhesive & Gel |
Mobile Platforms |
iOS : iOS 11 or later Android : Android 4.4.2 (API 19) or greater and devices which have the following architectures: x64 and ARM. Devices must be compatible with Wi-Fi 802.11n and BLE. |
Security and Encryption |
Wi-Fi Data Channel : TLS 1.2 Bluetooth : AES128 and RSA4096 Local Storage : Temporary Cloud Storage : Yes DICOM : Yes |
Charging and Bootup |
Scan Time : ~60 min Charge Time : ~90 min Standby : ~7 days Bootup : Platform dependent, Generally < 30 seconds |
Operating Range |
Ambient Temperatures : Between 0°C / 32°F and 40°C / 104°F Relative Humidity : Between 15% and 90% Recommended Maximum Exam Time : 20 minutes |
