L7 HD3 Linear Ultrasound Scanner
Linear
L7 HD3 Linear Ultrasound Scanner
Standart
B-Mode
Color Doppler
M-Mode
Power Doppler
Opsiyon
DICOM
Pulsed-Wave Doppler
Needle Enhance
Elastography
Uygulamalar
İdeal

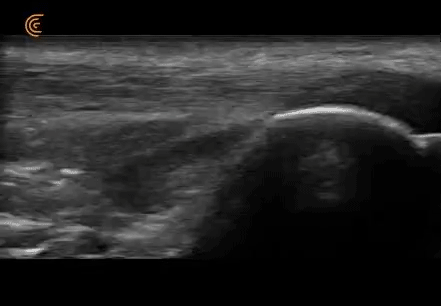

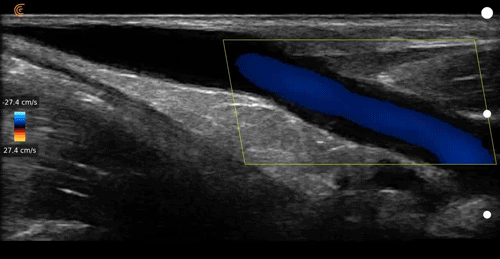

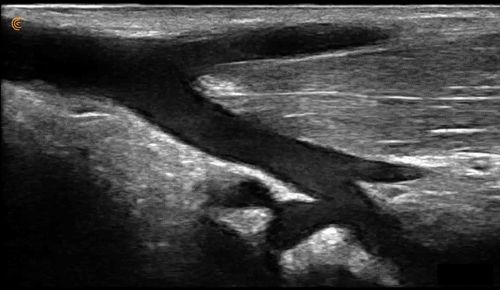

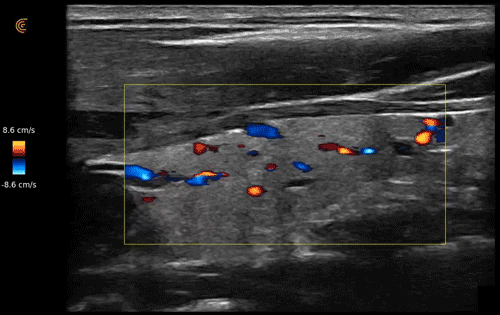

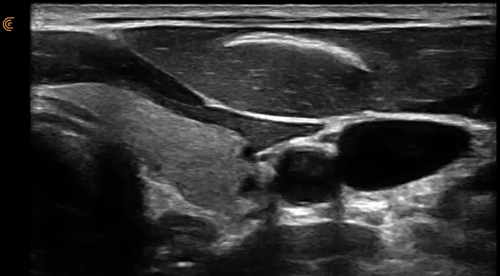

Vascular Small Parts MSK Nerve Thyroid Superficial Breast Lung Ocular
Teknik Özellikler
Overview |
Frequency : 4–13 MHz Max Depth : 11 cm |
Clinical Applications |
Vascular Small Parts MSK Nerve Thyroid Superficial Breast Lung Ocular |
Calculations Packages |
Vascular |
Physical Characteristics |
Dimensions : 147 x 76 x 32 mm Weight : 288 g Programmable Buttons : 2 Field of View : 38mm |
Probe Covers |
CIVCO : Standard Width - Latex-Free Ultrasound Covers for Wireless Probes Safersonic : Modified Single - Sterile Sonography Cover with Adhesive Area without fixation tape Safersonic : Single Plus - Sterile Sonography Cover with Adhesive & Gel |
Mobile Platforms |
iOS : iOS 11 or later Android : Android 4.4.2 (API 19) or greater and devices which have the following architectures: x64 and ARM. Devices must be compatible with Wi-Fi 802.11n and BLE. |
Security and Encryption |
Wi-Fi Data Channel : TLS 1.2 Bluetooth : AES128 and RSA4096 Local Storage : Temporary Cloud Storage : Yes DICOM : Yes |
Charging and Bootup |
Scan Time : ~60 min Charge Time : ~90 min Standby : ~7 days Bootup : Platform dependent, Generally < 30 seconds |
Operating Range |
Ambient Temperatures : Between 0°C / 32°F and 40°C / 104°F Relative Humidity : Between 15% and 90% Recommended Maximum Exam Time : 20 minutes |
Diğer Ürünlerimiz
C3 HD3 Multipurpose Scanner
Frequency : 2–6 MHz
Max Depth : 40 cm
Abdominal, Cardiac, Lung, OB/GYN, Superficial, Vascular,
L15 HD3 High Frequency Linear Scanner
Frequency : 5–15 MHz
Max Depth : 7 cm
Breast, MSK, Nerve, Small Parts, Superficial, Thyroid,
PA HD3 Phased Array Ultrasound Scanner
Frequency : 1–5 MHz
Max Depth : 40 cm
Cardiac, Vascular Access, Abdominal, Lung,
C7 HD3 Microconvex Ultrasound Scanner
Frequency : 3–10 MHz
Max Depth : 15 cm
Pediatrics, Cardiac, Abdominal, Lung, Bladder, MSK, Small Parts, Speech Therapy,
EC7 HD3 Endocavity Ultrasound Scanner
Frequency : 3–10 MHz
Max Depth : 15 cm
Early OB, IVF, Pelvic, Urology,
L20 HD3 Ultra-High Frequency Linear Scanner
Frequency : 8–20 MHz
Max Depth : 6 cm
Aesthetics, Dermatology, Plastic Surgery, Pediatrics, Podiatry, Rheumatology, Small Parts, Vascular Access, MSK, Ophthalmology,
PAL HD3 Convex+Linear+Echo Scanner
Frequency : 1-15 MHz
Max Depth : 40 cm
Cardiac, DVT, Lung, Vascular Access, Abdomen, Superficial, MSK, Nerve, Small Parts, Thyroid,
