PAL HD3 Convex+Linear+Echo Scanner
Convex + Linear + Echo
PAL HD3 Convex+Linear+Echo Scanner
Standart
B-Mode
Color Doppler
M-Mode
Power Doppler
Opsiyon
DICOM
Pulsed-Wave Doppler
Uygulamalar
İdeal
Cardiac DVT Lung Vascular Access Abdomen Superficial MSK Nerve Small Parts Thyroid

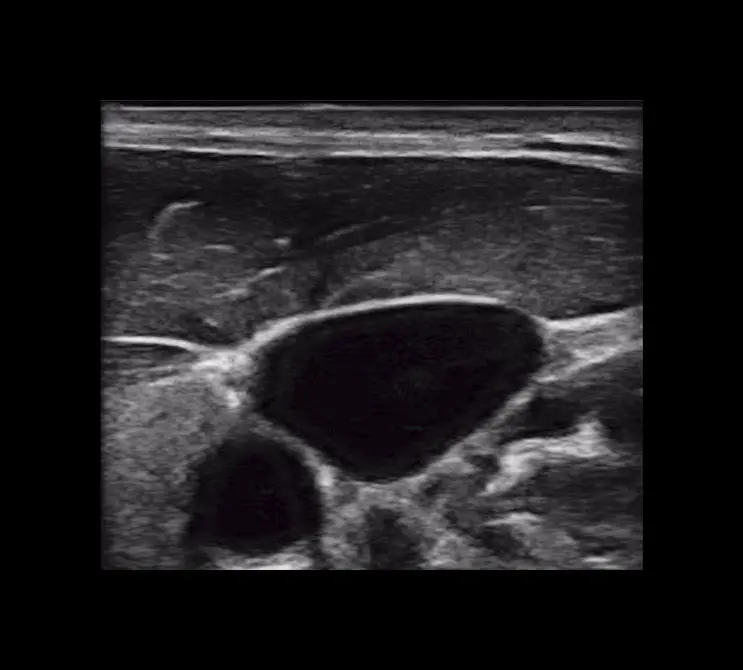

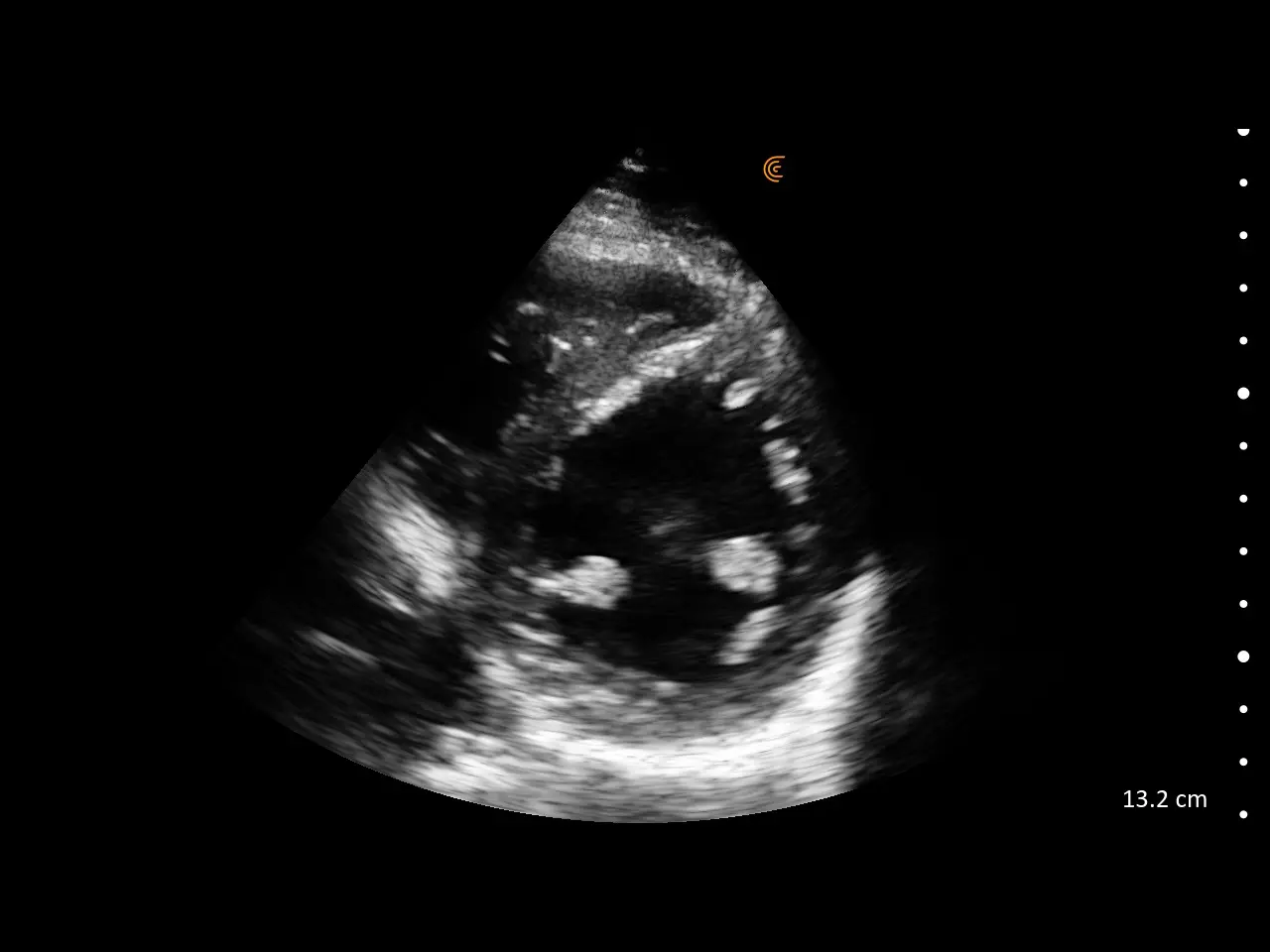

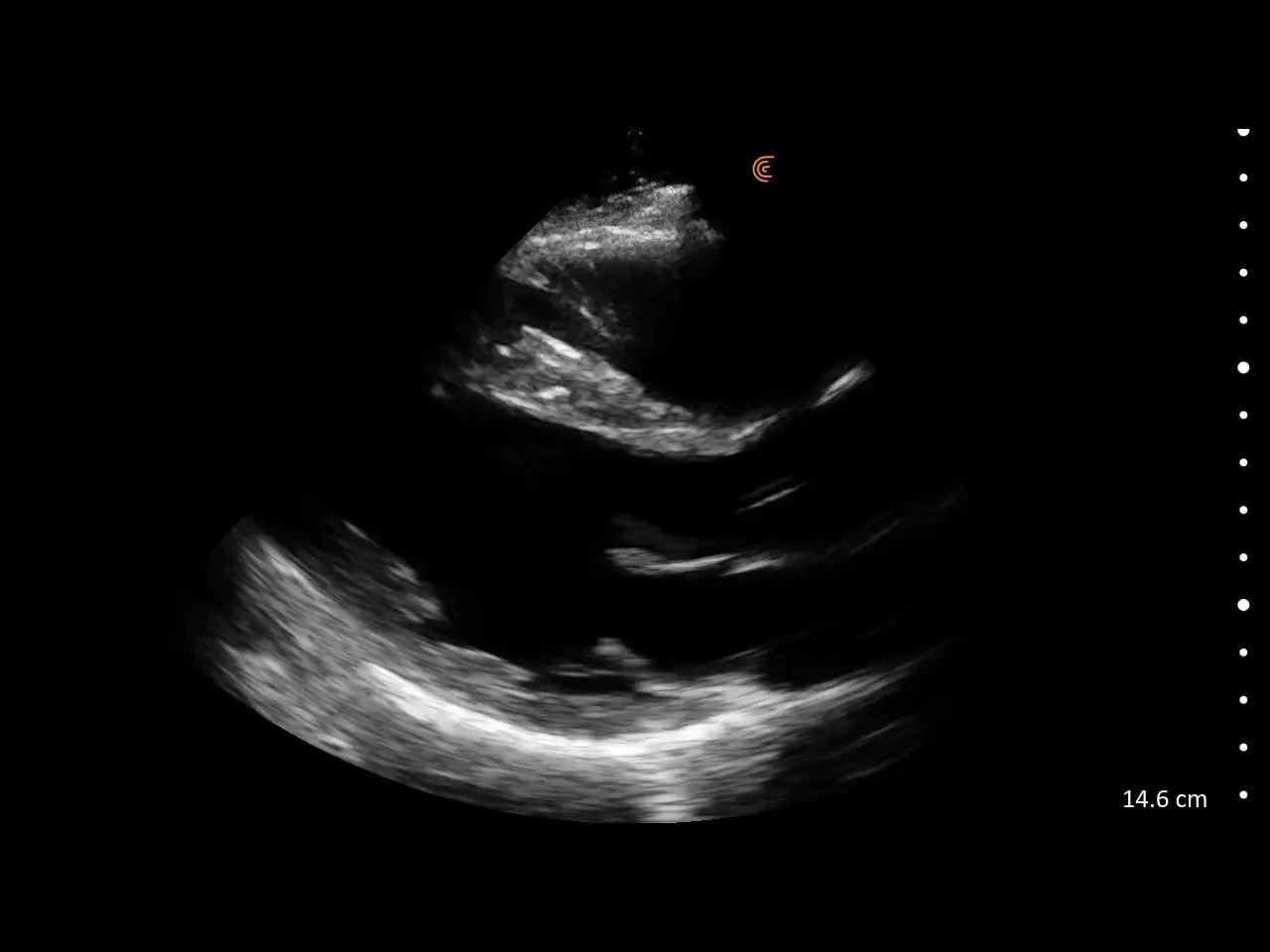

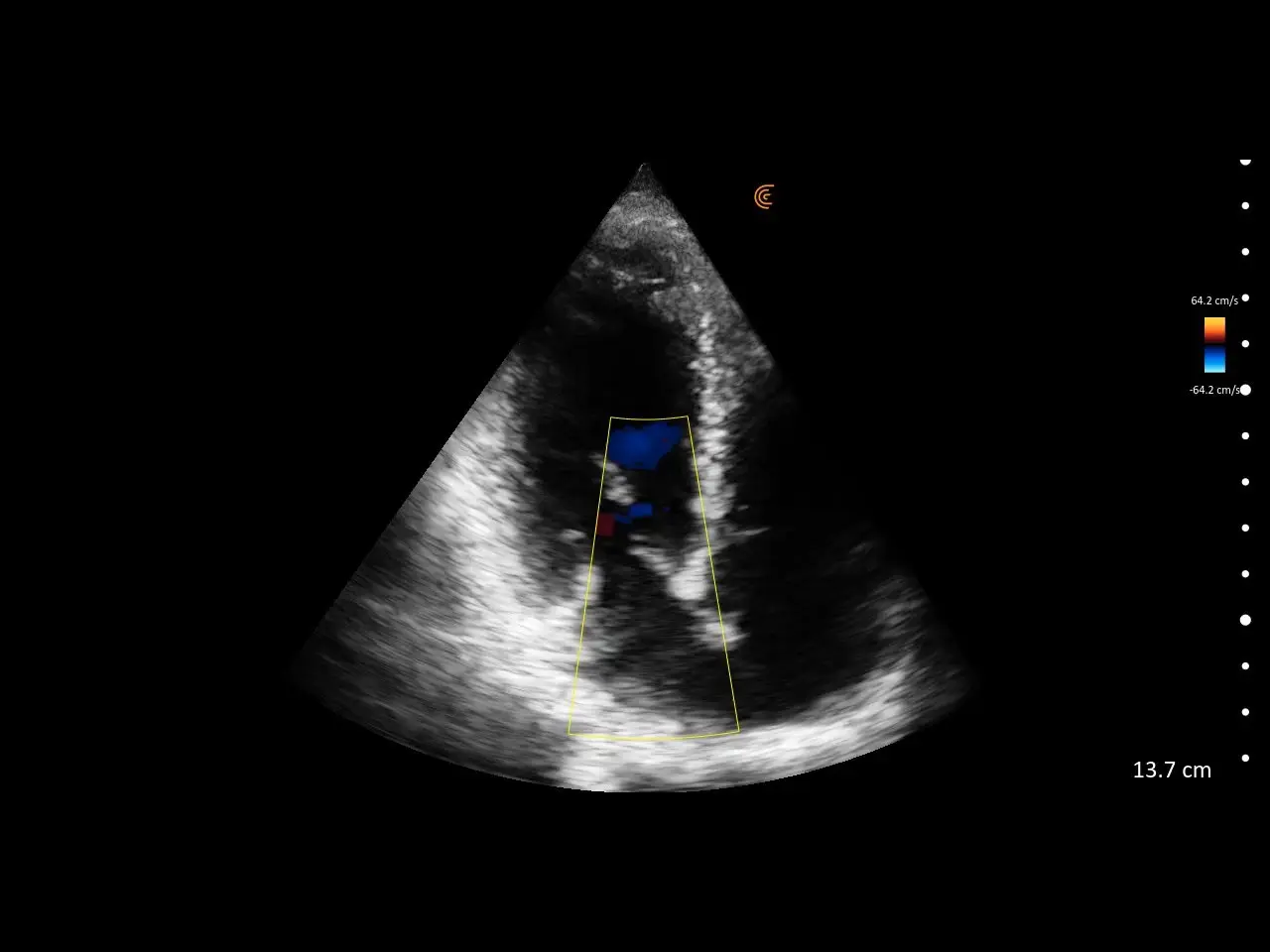

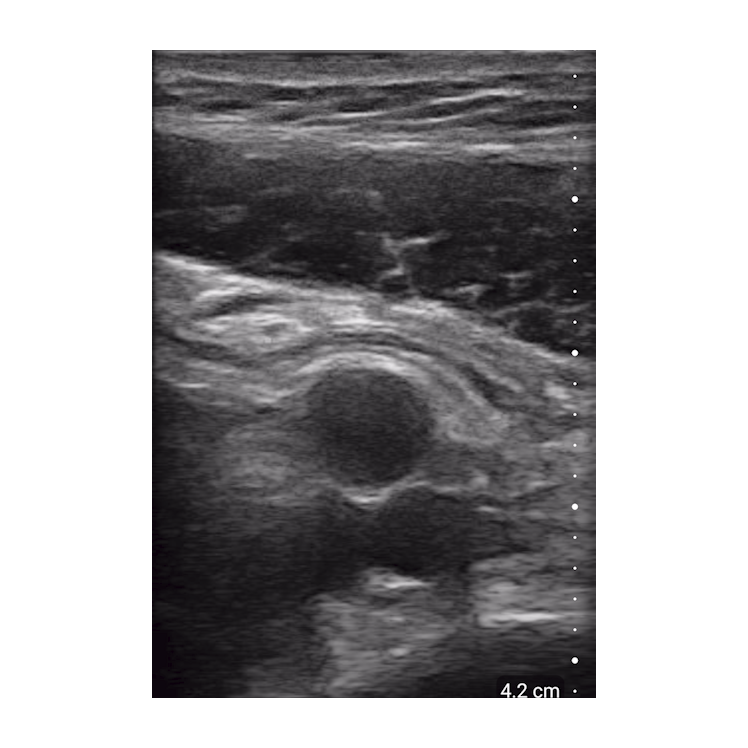

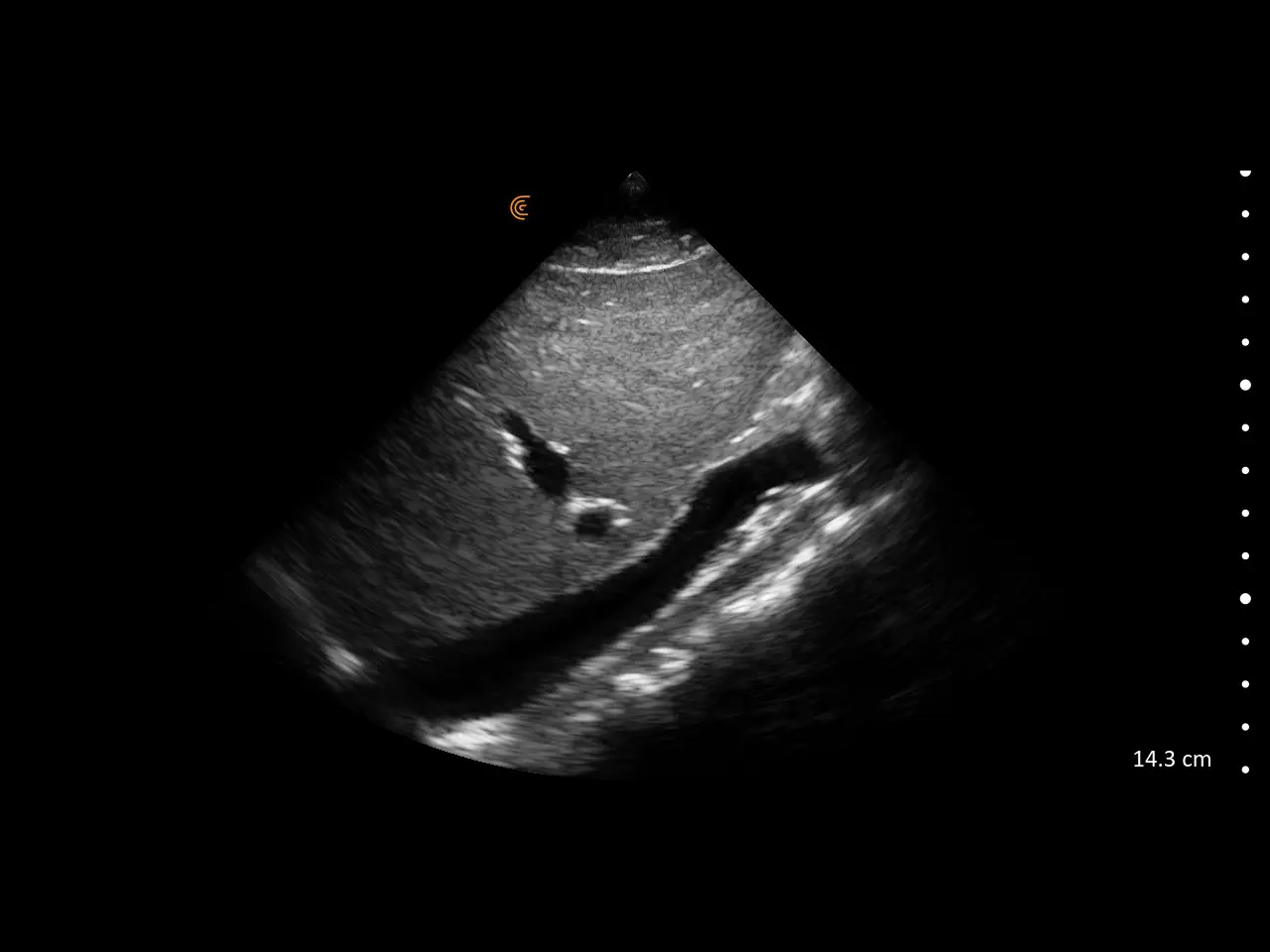

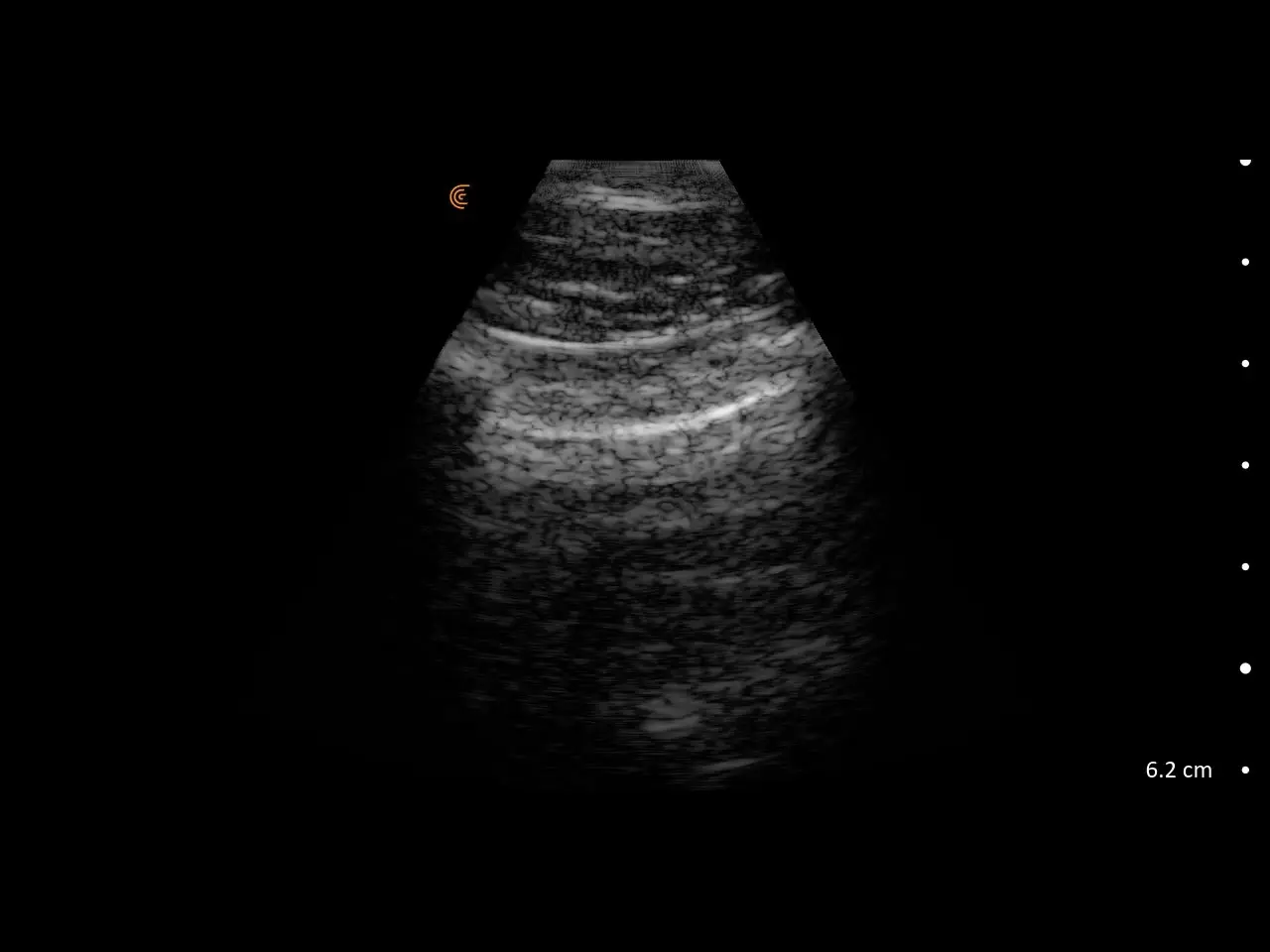

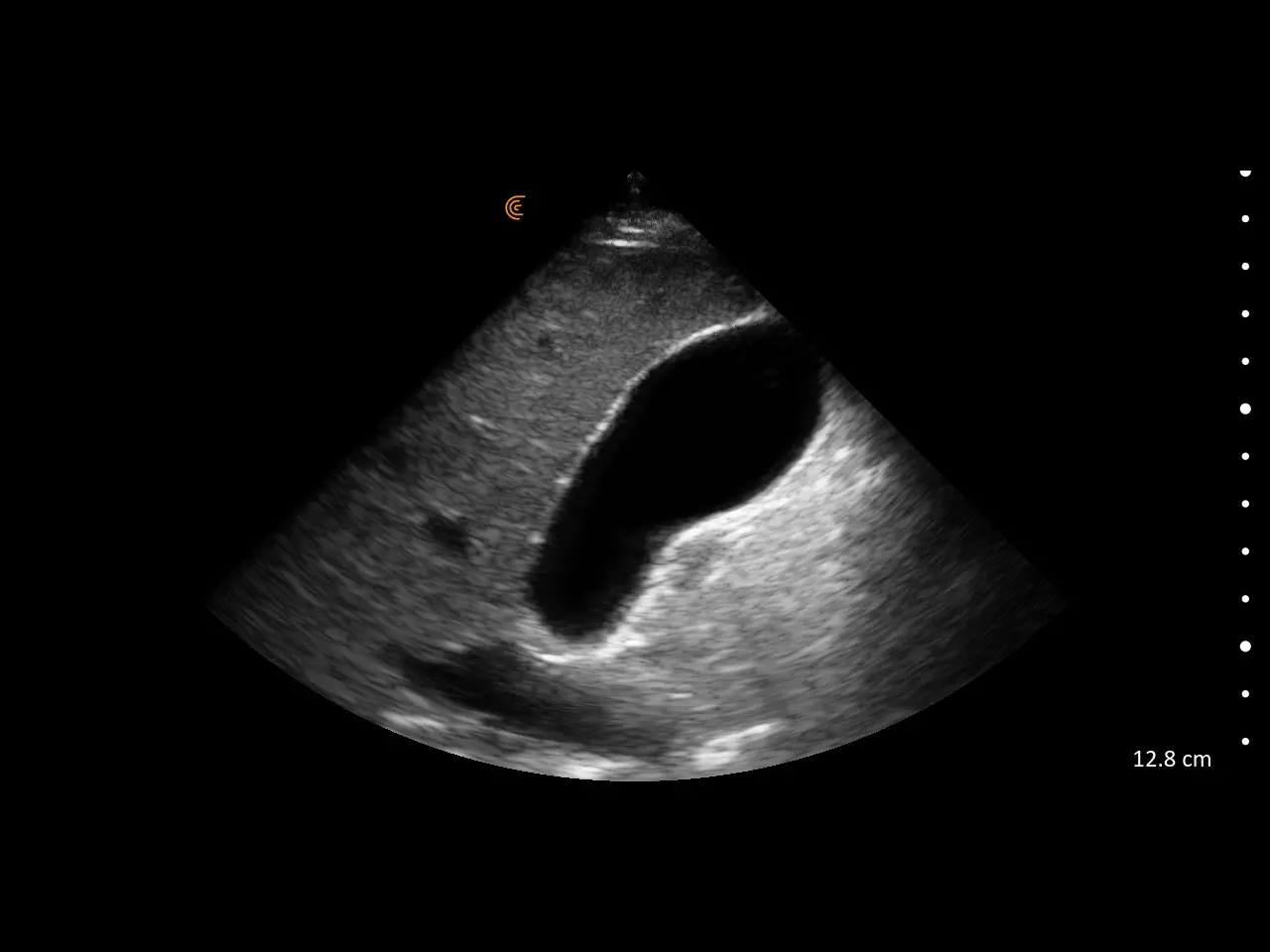

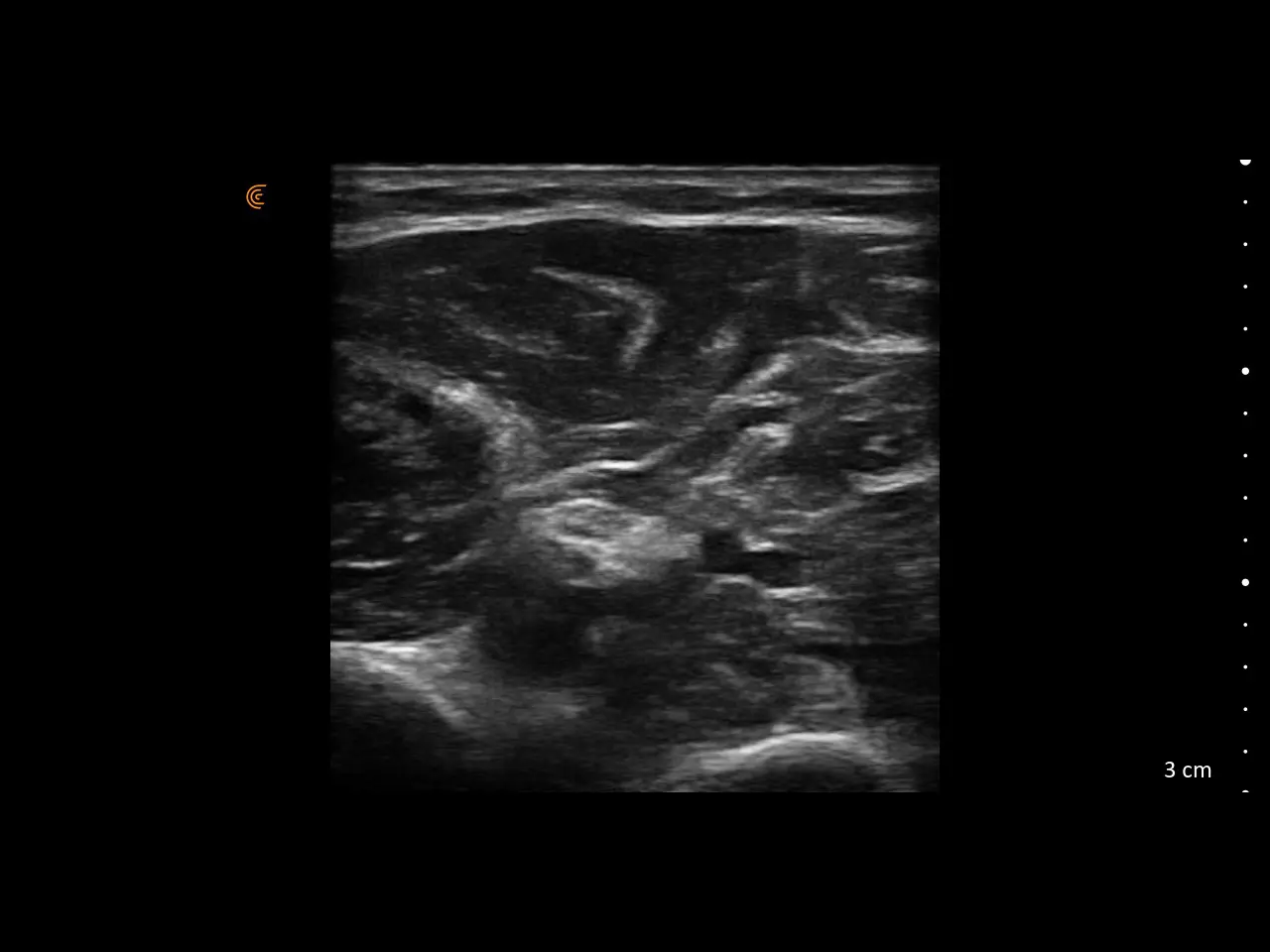

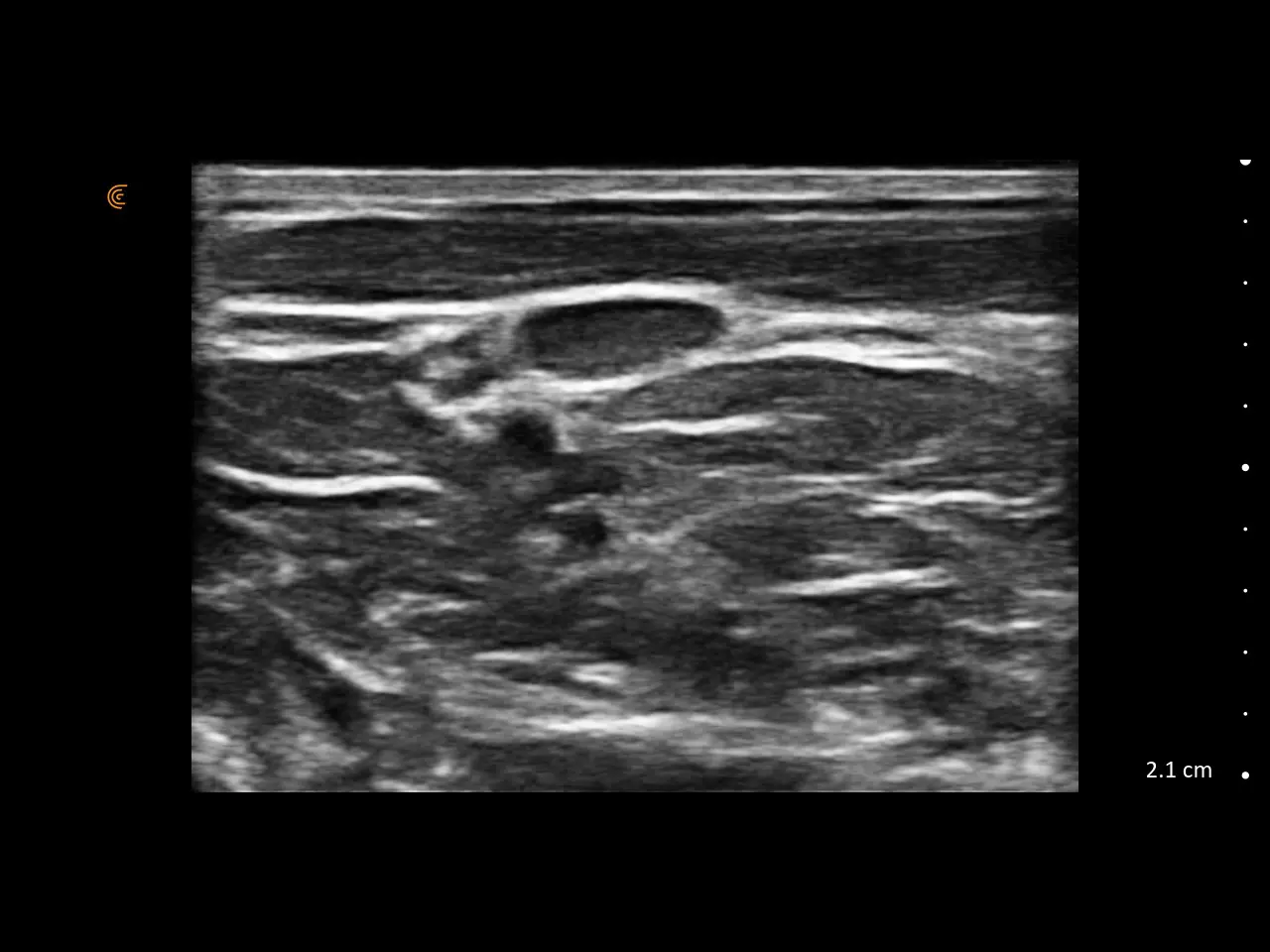

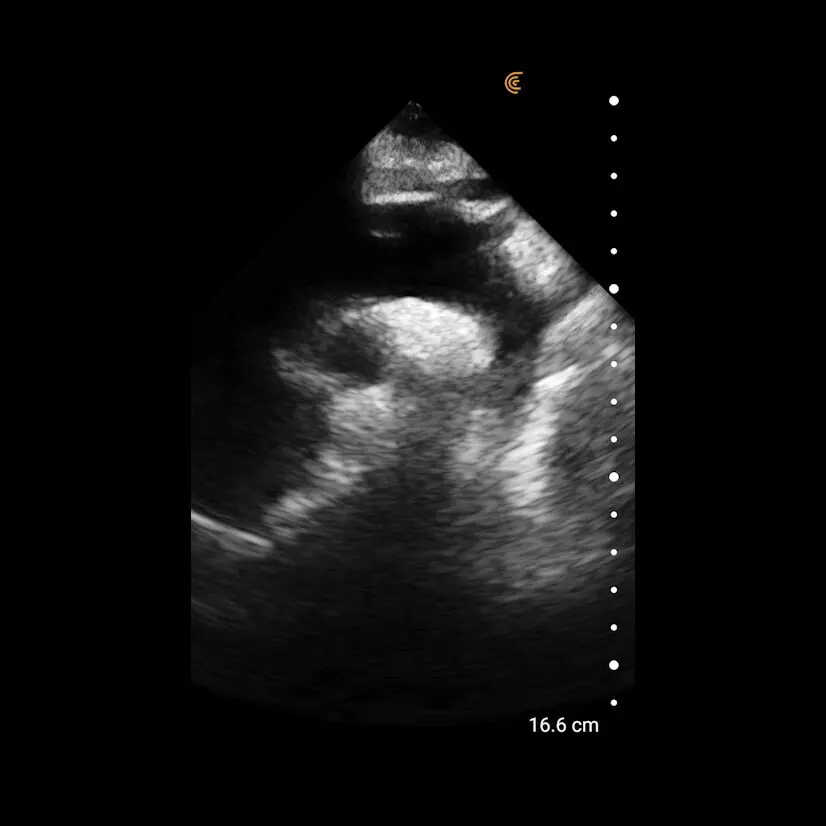

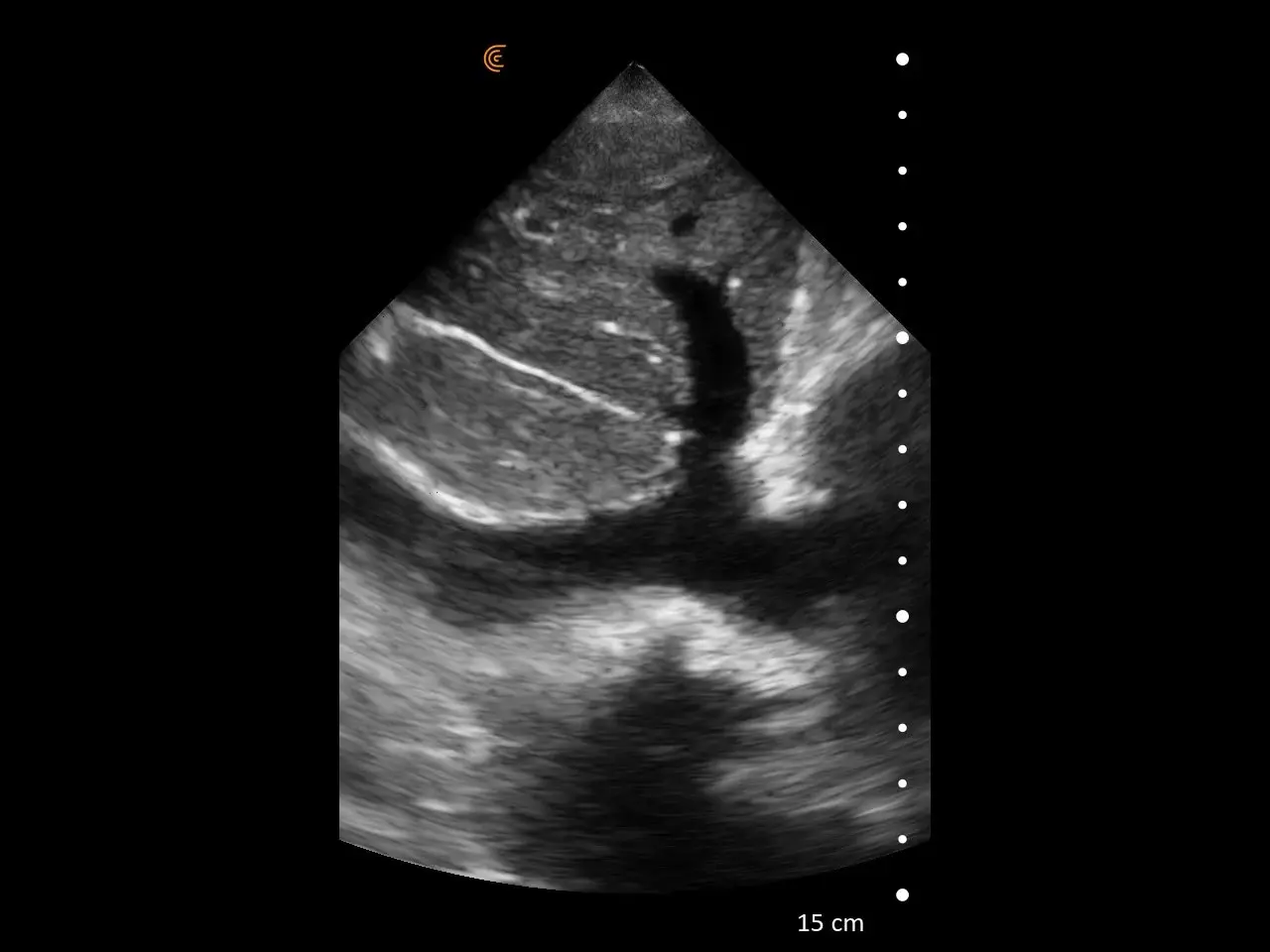

Klinik Görüntüler
Teknik Özellikler
Overview |
Frequency : 1-15 MHz Max Depth : 40 cm |
Clinical Applications |
Cardiac DVT Lung Vascular Access Abdomen Superficial MSK Nerve Small Parts Thyroid |
Calculations Packages |
Abdomen Bladder Breast Cardiac Lung MSK Nerve/Pain Obstetrics Ocular Small Organs Vascular |
Physical Characteristics |
Dimensions : 148 x 76 x 32mm Field of View : 90 Degrees Weight : 307 g Programmable Button : 2 |
Probe Covers |
CIVCO : Standard Width – Latex-Free Ultrasound Covers for Wireless Probes Safersonic : Modified Single – Sterile Sonography Cover with Adhesive Area without fixation tape Safersonic : Single Plus – Sterile Sonography Cover with Adhesive & Gel Sheathing : Probe Cover Kit (Non-Invasive) Sheathing : Probe Cover Kit (Invasive) |
Mobile Platforms |
iOS : Apple iOS 14+ Android : Android 11+ |
Security and Encryption |
Wi-Fi Data Channel : TLS 1.2 Bluetooth : AES128 and RSA4096 Local Storage : Temporary Cloud Storage : Yes with Membership or Advanced Software DICOM : Yes with Membership or Advanced Software |
Charging and Bootup |
Scan Time : ~60 min Charge Time : ~90 min Standby : ~7 days Bootup : Platform dependent, generally < 30 seconds |
Operating Range |
Ambient Temperatures : Between -20°C and 50°C Relative Humidity : Between 0% and 95% Recommended Maximum Exam Time : 20 minutes |
